PLANT LIST

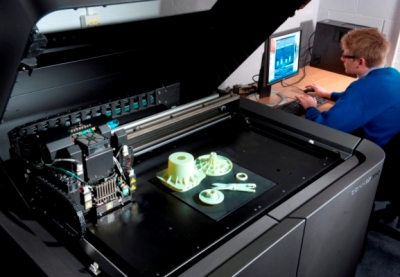

Rutland Plastics is one of the country’s leading companies in the plastic injection moulding process. A total service is available from design and prototyping, through tool making and product manufacture, to machining and assembly.

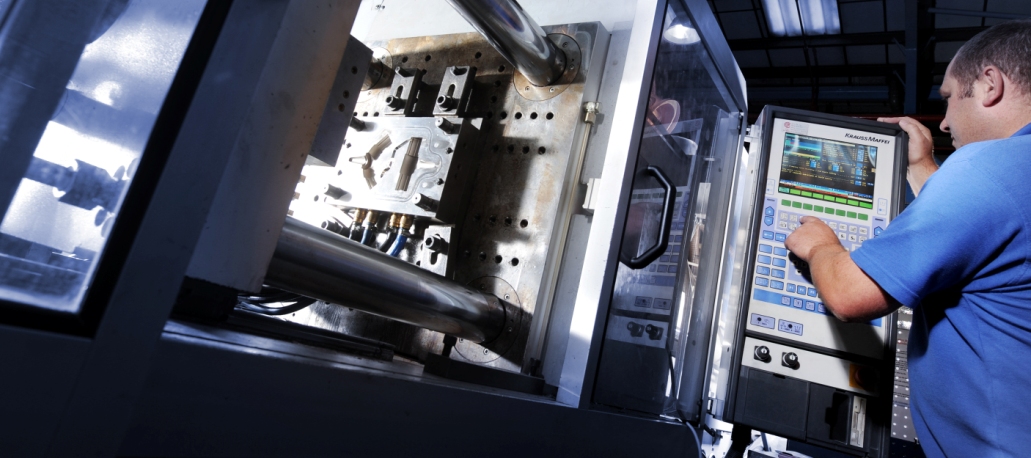

Our factory is equipped with a wide range of modern, energy efficient injection moulding machines, many with robots, supported by ancillary equipment suitable for up-to-date plastic moulding techniques. You as a customer benefit from quicker tool changes, consistency in the quality and performance of your plastic products and components and more efficient production which in turn results in cost effective injection moulded solutions.
Whether your plastic part is small or large we have the moulding capability to handle it. With shot weights ranging from just a few grams up to 48 kgs, and moulding size up to 1.5m2 Rutland Plastics can satisfy all your injection moulding requirements.
**CLICK ON INDIVIDUAL MACHINES FOR MORE INFORMATION***
| MACHINE | QTY | TONNES | SHOT WT. | SIZE BETWEEN TIE BARS |
|---|---|---|---|---|
| BMB | 1 | 1700 | 38000 gms | 1510mm x 1310mm |
| ENGEL | 1 | 1700 | 19890 gms | 1850mm x 1415mm |
| ENGEL | 1 | 1500 | 12720 gms | 1535mm x 1275mm |
| WITTMANN | 1 | 1100 | 8695 gms | 1450mm x 1100mm |
| ENGEL | 1 | 900 | 7095 gms | 1170mm x 1000mm |
| WITTMAN | 1 | 700 | 4136 gms | 1100mm x 950mm |
| ENGEL | 1 | 700 | 3,660 gms | 1100mm x 960mm |
| BORCHE | 1 | 600 | 2058 gms | 910mm x 910mm |
| ENGEL | 1 | 500 | 1680 gms | 910mm x 830mm |
| ENGEL | 1 | 420 | 2233 gms | 750x750 Platen Size |
| WITTMANN | 2 | 400 | 1936 gms | 800mm x 720mm |
| ENGEL | 2 | 300 | 935 gms | 1100mm x 1000mm (Platen Size) |
| KRAUSS MAFFEI | 1 | 250 | 953 gms | 630mm x 630mm |
| WITTMANN | 1 | 210 | 490 gms | 670mm x 620mm |
| ENGEL | 1 | 160 | 422 gms | 750mm x 750mm (Platen Size) |
| WITTMAN | 1 | 160 | 490 gms | 570mm x 520mm |
| KRAUSS MAFFEI | 1 | 150 | 476 gms | 500mm x 500mm |
| KRAUSS MAFFEI | 1 | 150 | 343 gms | 560mm x 500mm |
| WITTMANN | 1 | 150 | 372 gms | 520mm x 470mm |
| BORCHE | 1 | 150 | 321 gms | 460mm x 460mm |
| ENGEL | 1 | 120 | 173 gms | 740mm x 680mm (Platen Size) |
| WITTMANN | 1 | 90 | 96 gms | 470mm x 420mm |
| KRAUSS MAFFEI | 1 | 80 | 250 gms | 405mm x 405mm |
| KRAUSS MAFFEI | 1 | 80 | 185 gms | 405mm x 405mm |
| ENGEL | 1 | 80 | 140 gms | 670mm x 600mm (Platen Size) |
| KRAUSS MAFFEI | 1 | 50 | 105 gms | 405mm x 321mm |
| ENGEL | 1 | 50 | 48 gms | 550mm x 450mm (Platen Size) |
| WITTMANN | 1 | 50 | 96 gms | 370mm x 320mm |
