I NEED EXTRA CAPACITY
This may be a temporary requirement due to a major breakdown, maybe a sudden influx of tooling and your machines are at full capacity, perhaps you need a larger machine or a new machine delivery has let you down. Whatever the reason, we can provide you with capacity on specific machines to accommodate your requirements,
and in some instances we may be able to help immediately.

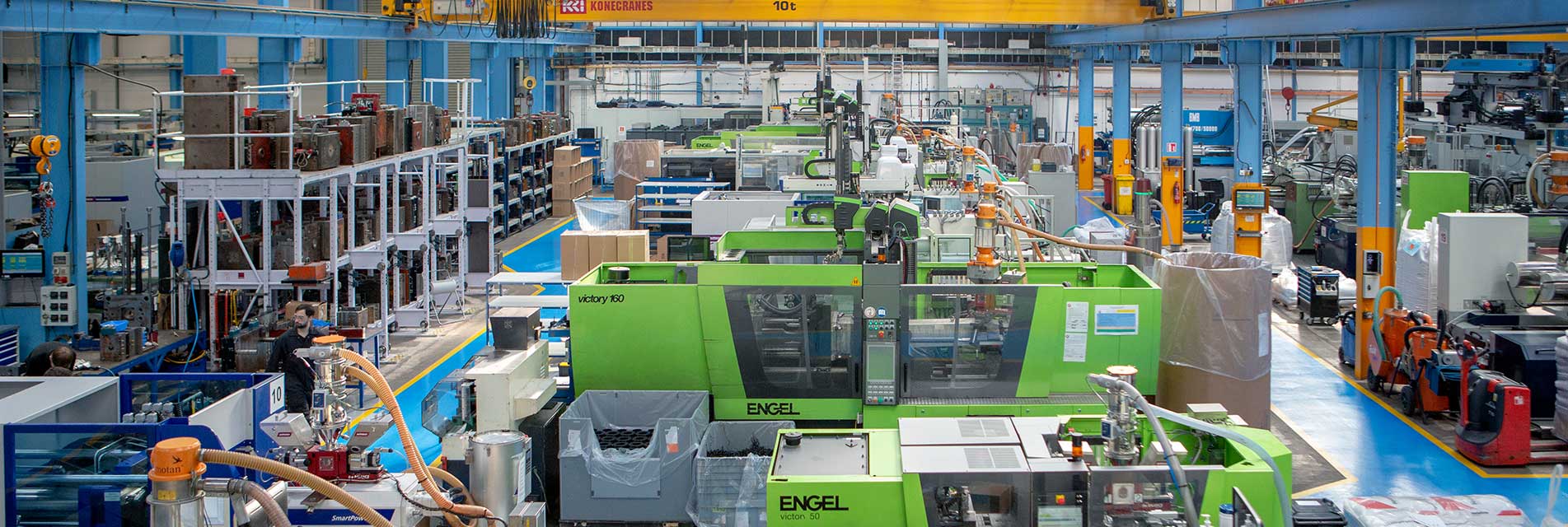

Our extensive range of injection moulding machines means that most custom moulding requirements can be met, we have the capability to produce injection mouldings from 1g to 48kg in weight and size of 1.5m x 1.5m.
**CLICK ON INDIVIDUAL MACHINES FOR MORE INFORMATION***
| MACHINE | QTY | TONNES | SHOT WT. | SIZE BETWEEN TIE BARS |
|---|---|---|---|---|
| BMB | 1 | 1700 | 38000 gms | 1510mm x 1310mm |
| ENGEL | 1 | 1700 | 19890 gms | 1850mm x 1415mm |
| ENGEL | 1 | 1500 | 12720 gms | 1535mm x 1275mm |
| WITTMANN | 1 | 1100 | 8792 gms | 1450mm x 1100mm |
| ENGEL | 1 | 900 | 7095 gms | 1170mm x 1000mm |
| WITTMANN | 1 | 700 | 4090 gms | 1100mm x 950mm |
| ENGEL | 1 | 700 | 3660 gms | 1100mm x 960mm |
| BORCHE | 1 | 600 | 2058 gms | 910mm x 910mm |
| ENGEL | 1 | 500 | 1680 gms | 910mm x 830mm |
| WITTMANN | 2 | 400 | 1936 gms | 800mm x 720mm |
| ENGEL | 2 | 300 | 935 gms | 1100mm x 1000mm (Platen Size) |
| KRAUSS MAFFEI | 1 | 250 | 953 gms | 630mm x 630mm |
| HAITIAN | 1 | 250 | 410 gms | 580mm x 580mm |
| WITTMANN | 1 | 210 | 490 gms | 670mm x 620mm |
| ENGEL | 1 | 160 | 422 gms | 750mm x 750mm (Platen Size) |
| ENGEL | 1 | 160 | 301 gms | 750mm x 750mm (Platen size) |
| WITTMANN | 1 | 160 | 490 gms | 570mm x 520mm |
| KRAUSS MAFFEI | 1 | 150 | 343 gms | 560mm x 500mm |
| WITTMANN | 1 | 150 | 372 gms | 520mm x 470mm |
| BORCHE | 1 | 150 | 321 gms | 460mm x 460mm |
| ENGEL | 1 | 120 | 173 gms | 740mm x 680mm (Platen Size) |
| WITTMANN | 1 | 120 | 228 gms | 520mm x 470mm |
| WITTMANN | 1 | 90 | 96 gms | 470mm x 420mm |
| KRAUSS MAFFEI | 1 | 80 | 250 gms | 405mm x 405mm |
| ENGEL | 1 | 80 | 140 gms | 670mm x 600mm (Platen Size) |
| KRAUSS MAFFEI | 1 | 50 | 105 gms | 405mm x 321mm |
| ENGEL | 1 | 50 | 48 gms | 550mm x 450mm (Platen Size) |
| WITTMANN | 1 | 50 | 96 gms | 370mm x 320mm |
I NEED EXTRA CAPACITY
What you should check before choosing a plastic injection moulder:
